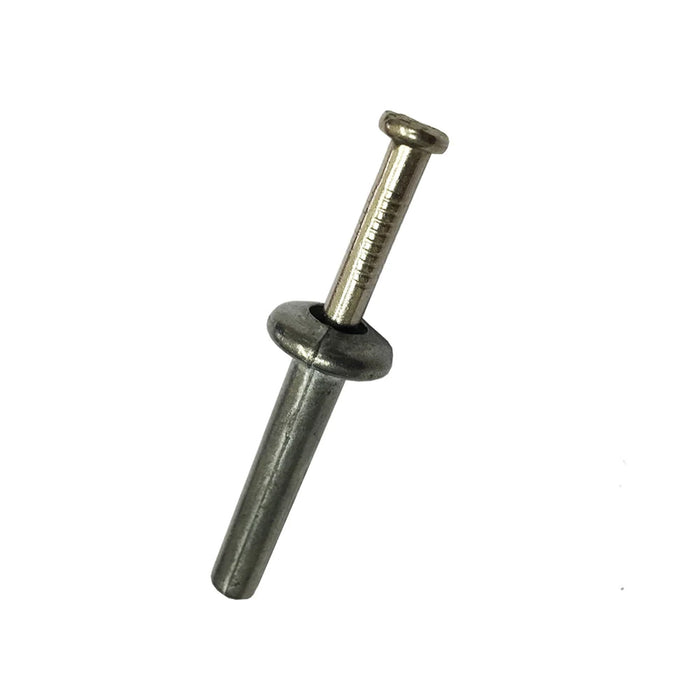

Stainless Steel Nail, Alloy Body, Hammer Drive Concrete Anchor (Tap in) 100 Pack

Stainless Steel Nail, Alloy Body, Hammer Drive Concrete Anchor (Tap in) 100 Pack

Stock Code: 6X30ANCHORPIN
$35.00 - $35.00
$35.00 Excl. GST
$35.00 Excl. GST
$35.00 Excl. GST

AVAILABILITY: This item is usually despatched same day

An all metal, heavy duty, impact setting, interference fit anchor. Designed for tamper resistant use in a variety of substrates such as concrete, stone, solid brick, solid block, hollow brick, hollow block and hollow slab.

FEATURES:
  • Hammer-in method makes installation quick and easy.
  • Full expansion of the anchor is evident when the head of the expansion nail sits flush with the flange.
  • Once fully set, the fixture becomes tamper resistant.
  • The anchor’s large flange prevents pullout.
  • Tread nail head.
  • Ribbed nail shank for better grip in the anchor.
SPECIFICATIONS:
  • Anchor Shank Diameter: 6.5mm
  • Anchor Shank Length: 32mm (excluding head)
  • Anchor Head Diameter: 13mm
  • Nail Head Diameter: 6mm
  • Minimum Hole Depth: 35mm
  • Drill Hole Diameter: 6.5mm (1/4")
  • Metal: 304 Stainless steel nail in a zinc alloy anchor
