Nedo X-LINER 5P Dot Laser Level

Stock Code:
Original price $268.00 - Original price $283.00
Original price
$268.00 Excl. GST
$268.00 Excl. GST
Current price $268.00 Excl. GST

AVAILABILITY: This item is usually dispatched same day

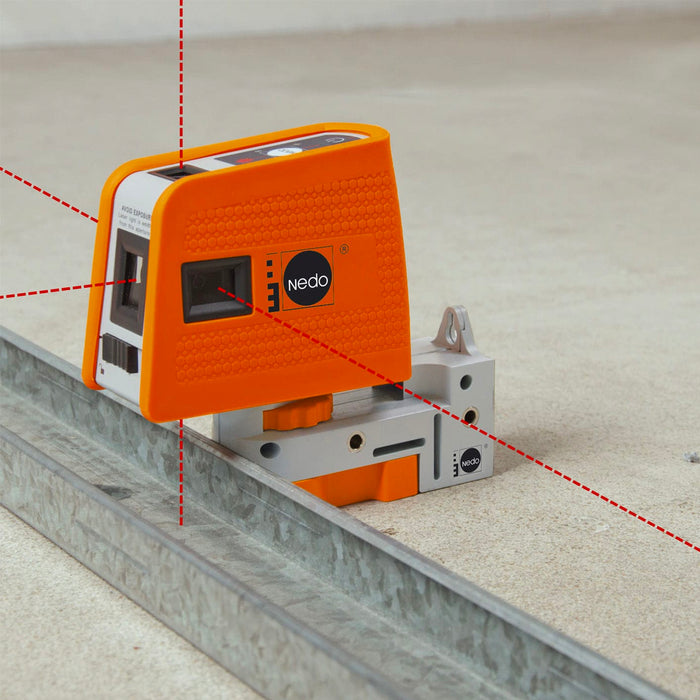

Nedo Germany brings you the self-levelling 5-beam point dot laser which transmits three horizontal and two vertical laser points: to the front, left, right, up and down.
The laser dots are arranged in an exact right angle to one another. The horizontal laser points are all at one height. Ideal for rapid horizontal levelling, vertical alignment, plumbing and for marking off right angles jobs.

Ideal for: level, square, plumb, tiling, set-out, plumbing, electrical, alignment, renovations, DIY, design, kitchens, glazing, flooring… the list goes on.

INCLUDES:

  • X-LINER 5P
  • Universal Adapter
  • Carry case
  • Batteries
  • Strap
  • Operating Instructions
  • Laser Target

FEATURES:

  • Bright red beam lasers
  • Self-levelling (pendulum)
  • ±0.3mm/m accuracy
  • 5 beams: front, left, right, up and down
  • Out of level alert
  • Pendulum lock

SPECIFICATIONS:

  • Laser Class: 2 Red
  • Laser Wavelength: 635nm
  • Laser Output:< 1mW
  • Self Levelling Range: ± 4 degree
  • Accuracy: ± 3mm @ 10m
  • Working range: Up to 30m
  • IP Rating: 54
  • Battery type: 2x AA Alkaline
  • Battery life: 33h
  • Operation Temperature Range: -5℃ to +40℃
  • Storage Temperature Range: -20℃ to +70℃
  • Tripod Mount: 1/4" x 20 & 5/8" x 11 (can be used without tripod)
  • Dimensions: 110 (L) X 40 (H) X 85mm (130mm (H) when using the universal adapter)
  • Warranty: 12 month warranty
