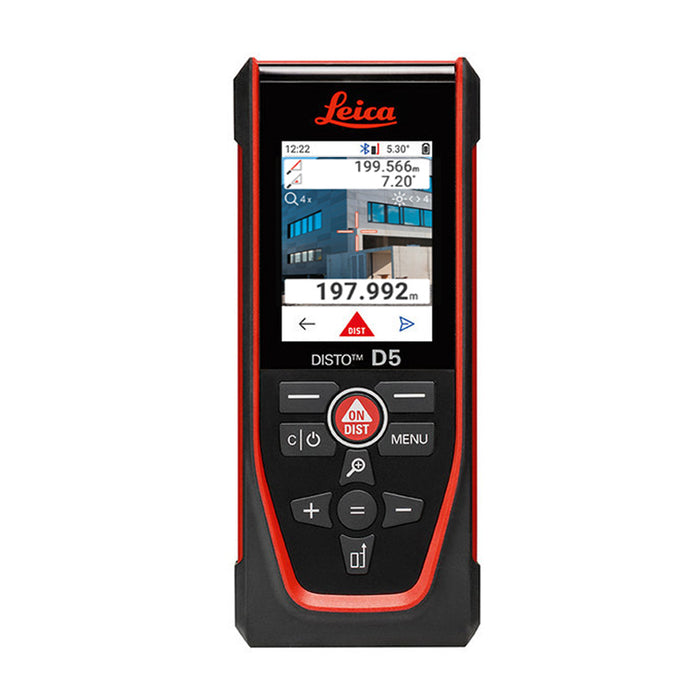

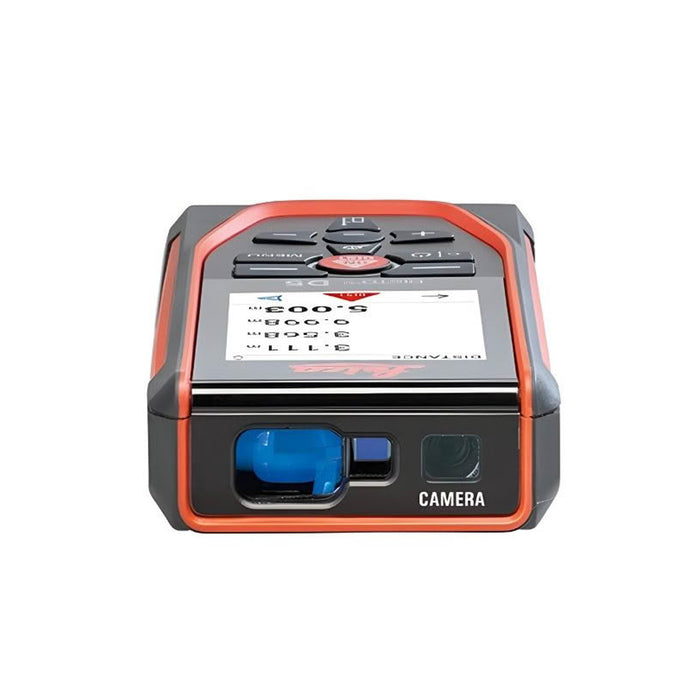

Leica Disto D5 Laser Distance Measure

Stock Code: LG950908
Save $271.00 Save $271.00
Original price $1,086.00
Original price $1,086.00 - Original price $1,086.00
Original price $1,086.00
Current price $815.00 Excl. GST
$815.00 Excl. GST
Current price $815.00 Excl. GST

AVAILABILITY : This item is usually dispatched same day

The Leica DISTO D5 is particularly suitable for distance measurements in outdoor areas. Due to the digital Pointfinder, aiming is no problem even in sunshine and at very long distances. Both the target and the measurement results can be seen very clearly on the large display with IPS technology. For maximum accuracy, the measurement can be triggered by gestures, which is a distinct advantage, especially over long distances. High flexibility is offered by various functions, such as Smart Horizontal Mode, height tracking, profile or angle measurements. This means that any measurement situation on the construction site can be solved quickly and efficiently. The data can then be transferred to the DISTO Plan app or individual templates, e.g. in Excel, and processed further to support an efficient and error-free digital workflow.

INCLUDES:

  • Leica DISTO D5 laser distance meter
  • Hand loop
  • Pouch
  • USB cable
  • Safety instructions
  • Calibration Certificate Silver
  • Quick Start with QR code linking to online manual
  • 3 Years warranty card

FEATURES:

  • Range up to 200 m
  • ± 1.0 mm accuracy, 0.1 mm resolution
  • Measuring slopes
  • Smart Horizontal Mode
  • Fast start-up time
  • Foldable end-piece with automatic detection
  • Bright and clear 2.4" IPS display with scratch-proof lens

SPECIFICATIONS:

  • Measuring accuracy:  1.0mm (with favourable conditions)
  • Measuring accuracy:  2.0mm (with unfavourable conditions)
  • Range: 0.05~200m (with favourable conditions)
  • Range: 0.05~120m (with unfavourable conditions)
  • Minimum measurement: 0.1mm
  • Units: m, ft, in, yd
  • X-Range Power Technology: Yes
  • Laser Class 2: 635 nm, <1 mW
  • Digital Point finder with 4-fold zoom: Yes
  • Tilt measuring range: 360°
  • Tilt measuring tolerance: ± 0.2°
  • ø laser point | at distances: 6 / 30 / 60 mm | 10 / 50 / 100 m
  • Protection class: IP54 (dust- and splash water protected)
  • Auto. laser switch off after: 90 s
  • Auto. power switch off after: 180 s
  • Bluetooth® Smart: Bluetooth® v5.0
  • Range of Bluetooth®: Up to 10 m
  • Temperature range storage/operation: -25 to 70 °C / -10 to 50 °C
  • Measurements per charge (Li-Ion 2000 mAh) : Up to 5,000 (reduced in Bluetooth Mode)
  • Batteries: Li-Ion 2000mAH
  • Dimensions: 144 x 60 x 24 mm
  • Weight: 180g
  • Warranty: 2 years (extended to 3 years by registering it with Leica)
