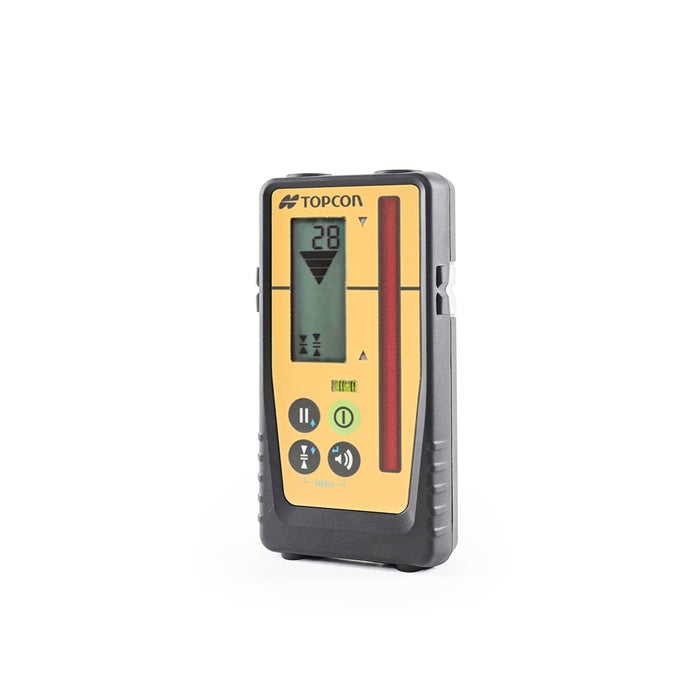

Topcon LS-100D mm Laser Receiver

▼ Download Brochure
▼ Download User Manual

AVAILABILITY: This item is usually dispatched same day

LS-100D Receiver Only, Clamp "Holder 110" sold separately.

The LS-100D is the newest addition to the Topcon range. The laser receiver is designed to make elevation and vertical alignment control faster and easier for all applications with a digital readout of millimetres to grade. The LS-100D is a precise sensor that can meet the demands of even the toughest job.

FEATURES:

• 4 accuracy resolutions from ±0.5mm to ±10mm

• 90mm reception height for extra-wide beam capture sensor

• Built-in magnets for vertical & horizontal steel erection

• Hold button for locking display to read elevation results

• Large & bright LCD displays (front & back)

• Three coloured LEDs


FEATURES:

• Minimum laser rotation speed required: 300rpm
• Range: 1m - 400m (800m diameter)
• Laser Detection Height: 90 mm

• Numeric Readout Height: 70 mm (45mm above and 25mm below level)

• Reception Angle: ±45 degrees

• LED Grade Indicators: Orange, Green, Red (On/Off selectable)

• Power Supply: One AA Alkaline Battery

• Battery Life: Up to 45 hours with alkaline batteries

• Environmental: Waterproof, Dustproof to IP67

• Dimensions without clamp: 134 x 69 x 25 mm

• Weight without clamp: 190g

• Operating Temp: -20°C to +50°C

• Storage Temp: -40°C to +70°C

• Warranty: 12 months
