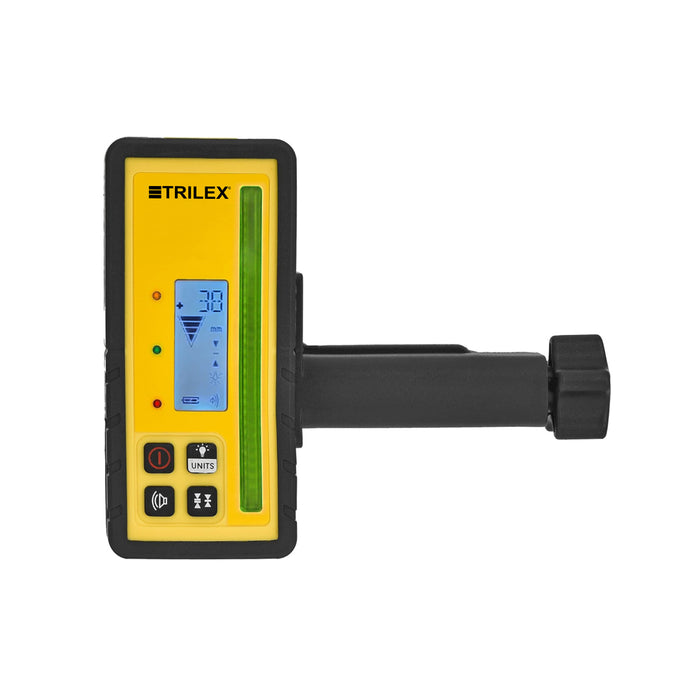

Trilex GBR1 Green Beam mm Laser Receiver with clamp

AVAILABILITY: This item is usually dispatched same day

The Trilex GBR1 Green Beam Laser Receiver is designed to make elevation and vertical alignment control faster and easier for all applications with a digital readout of millimetres to grade. The GBR1 is a precise sensor that can meet the demands of even the toughest job.

FEATURES:

• Gives distance in mm to level

• Compatible with most green beam rotating laser levels
• Rugged design

• Backlit display

• Comes with clamp


SPECIFICATIONS:

• Minimum laser rotation speed required: 300rpm
• Working Radius: 1 m - 300 m (Laser model dependent)
• Laser Detection Height: 125 mm

• Numeric Readout Height: 90 mm (45mm above and 45mm below level)

• Reception Angle: ±45 degrees minimum

• Beeper Max Volume: 100 dBA

• LED Grade Indicators: Green (on-grade), Red/Amber (High/Low)

• Power Supply: 1x 9v battery

• Battery Life: 18+ hours

• Environmental: Waterproof, Dust-proof to IP55

• Dimensions without clamp: 168 x 76 x 36 mm

• Weight without clamp: 371 g

• Shipping Dimensions: 165 x 75 x 38 mm

• Operating Temp: -20°C to +60°C

• Storage Temp: -40°C to +70°C
• Warranty: 12 months
