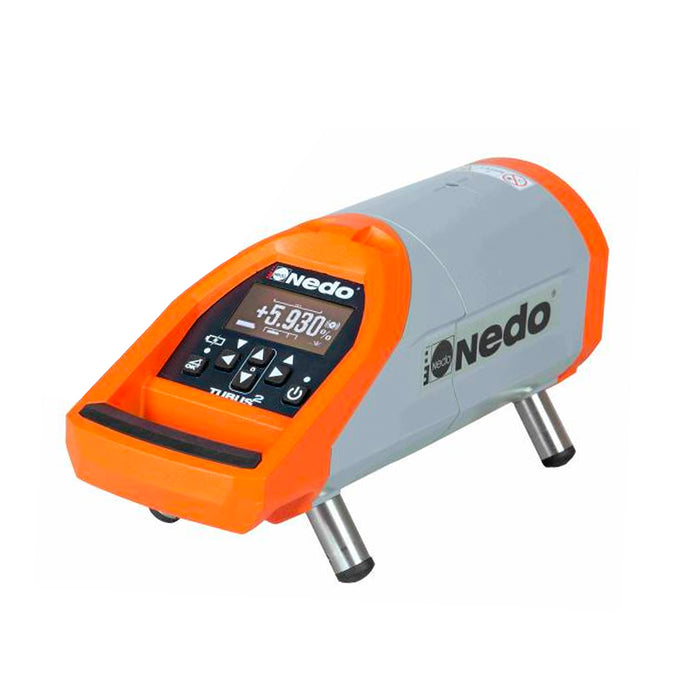

Nedo TUBUS 2 Green Beam Pipe Laser

AVAILABILITY: This item is usually dispatched same day.

Made in Germany, the Nedo TUBUS 2 features compact design which enables it to be used in narrow pipes with diameters of only 125mm. Insertion into small-diameter pipes is simplified by the innovative pipe slider, a rugged metal cylinder on the under- side of the laser.

The Nedo TUBUS 2 Green beam pipe laser is four times more visible to the human eye than red beam pipe lasers with the same power. The green laser dot of the TUBUS 2 is easy to see on the height-adjustable target plate, even in unfavourable light conditions. This high visibility means that jobs can be completed much faster in all conditions.
The sophisticated SmartControl operating concept of the Nedo TUBUS 2 Pipe Laser, facilitates easy, intuitive handling of all important data, including gradient, cross slope, axis alignment and battery level - all shown clearly shown on the large bright OLED display and on the remote control. The combined radio and infrared remote control ensures top transmission performance both in and above the pipe. The display and keypad of the pipe laser and remote control are identically configured to ensure intuitive operation, no matter where you are on the job site. Frequently used functions can be accessed at the touch of a button. The axes are aligned using the manual alignment function. Compensation for cross slope is automatic, also for plumbing.
Designed and made in Germany and built to be rugged enough to meet the demands of professionals.

Reliable performance for gruelling use in heavy construction, thanks to its rugged aluminium housing, which has an IP68 protection rating. The shock-protection system of the TUBUS 2 protects it's sensors and electronic components even under the
toughest conditions. The Nedo TUBUS 2 makes no compromises.



INCLUDES:

• Pipe laser TUBUS 2

• Radio remote control

• Height-adjustable target plate

• Sets of feet for 150 mm, 200 mm, 250 mm and 300 mm pipe diameters

• Battery charger

• Rugged carry case


FEATURES:

• Green laser diode for top visibility

• Clear Collimated beam for enhanced long distance viewing
• SmartControl for simple, intuitive operation

• Extremely robust design, IP 68 submersion protection

• Compact dimensions for use in tight pipe bends and pipes with diameters of 125 mm and more

• Laser and remote control with OLED display for easy read-offs

• Combined radio and infrared remote control for top transmission performance

• Manual alignment function & inclination measurement function

• Cross slope compensation, also for plumbing

• Adjustable vibration sensitivity

• Pipe slider for simple insertion of the laser into small-diameter pipes

• Li-ion battery for long periods of use

• Battery charger for simultaneous charging of the laser and the remote control

• Sets of feet for 150 mm, 200 mm, 250 mm and 300 mm pipe diameters

• Height-adjustable target plate



SPECIFICATIONS:

• Beam Colour: Green

• Levelling accuracy: ± 0.05 mm/m

• Grade range: -15 to +40%

• Horizontal adjustment range: ±10°

• Display resolution: 0.001%

• Laser: Green laser diode, class 3R

• Battery Life: 40 hrs. (Rechargeable)

• Water Resistance: IP68

• Operating Temperature: -20°C to +50°C

• Dimensions: ø 120 mm, length 300 mm

• Weight: 3.5kg

• Warranty: 6 years (1 year on remote, batteries & chargers)
