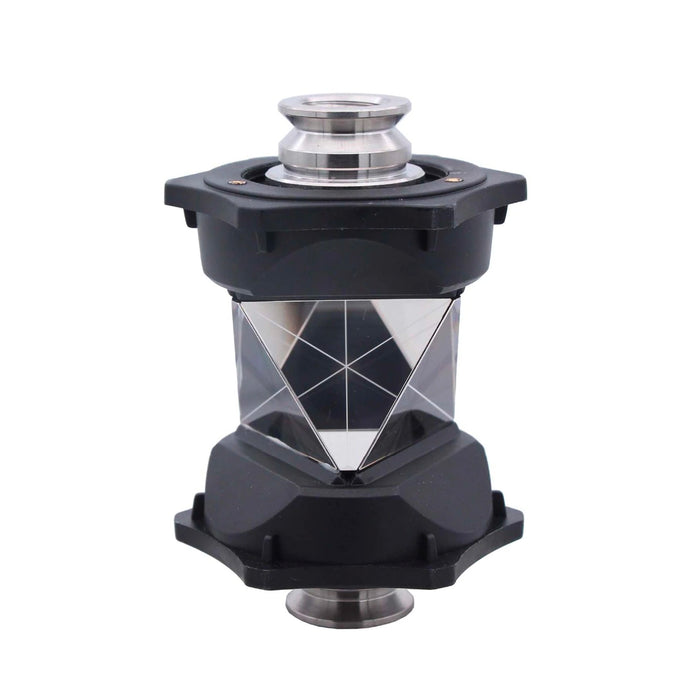

Trilex Topcon/Sokkia Style ATP1 360 Degree Prism Reflector Construction Series

AVAILABILITY: This item is usually dispatched same day

Developed to meet the needs of Auto-tracking Robotic Total Stations, the six precision-ground corner cubes are mounted in a rugged housing wth no horizontal offset between prisms and a -7mm prism constant. Designed with both a Female 5/8 x 11 mounting thread and a tribrach carrier mounting lug on top and bottom. Advanced 6-prism configuration provides unsurpassed measurement precision due to a minimum offset of each prism centre.

FEATURES:

• -7mm prism constant

• Six precision-ground corner cubes

• Protective caps


SPECIFICATIONS:

• Suits: Robotic total stations

• Prism Constant: -7 mm

• Prism Accuracy: 2mm+2ppm (1"~5" instrument)

• EAM spot: Φ200mm @100m

• Average measuring range: 1.3 ~ 1000m (average atmospheric condition)

• Height: 100mm

• Outside diameter: 68mm

• Inside Diameter: 38mm

• Base Connector: Female 5/8 x 11 mounting thread and a tribrach carrier mounting lug

• Top Connector: Female 5/8 x 11 mounting thread and a tribrach carrier mounting lug

• Warranty: 12 months
