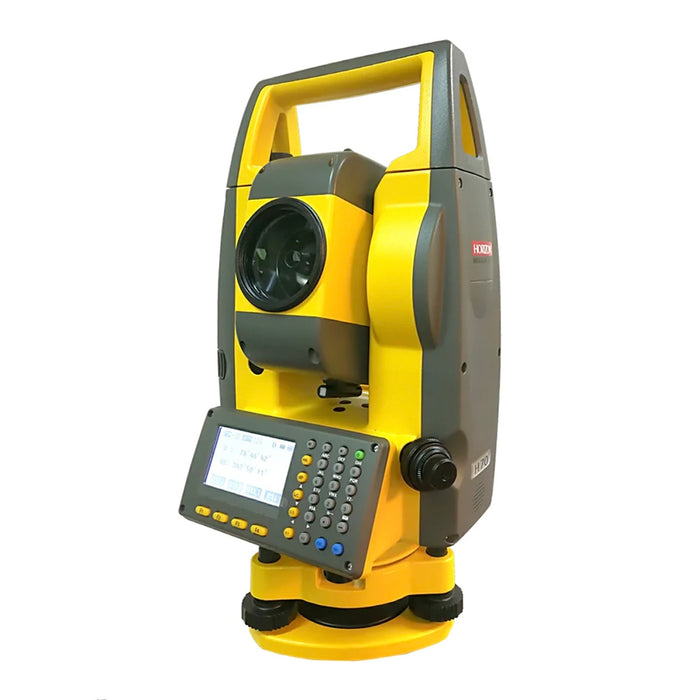

Horizon H72 Reflectorless Total Station 2"

Stock Code: H72a
Original price $0.01 - Original price $0.01
Original price
$0.01 Excl. GST
Current price

▼ Download Brochure


AVAILABILITY :
This item is usually dispatched same day.

Easy-to-use, high precision, rugged and reliable. The Horizon H70 series includes 1", 2", 3" and 5" models and incorporate many new technologies whilst still maintaining Horizon's easy-to-use functionality. New features include advanced EDM for fast, pinpoint reflectorless measurement up to 500m.

FEATURES:

  • Advanced Angle Measurement System
  • Advanced reflector less measurement
  • Absolute encoding
  • 500m reflectorless range
  • Dual compensator
  • Multiple Languages
  • Graphical points with line plotting on screen for plane viewing
  • Temperature and pressure sensors
  • Onboard COGO
  • Long battery life
  • Large LCD panel
  • SD card interface
  • USB and RS232 Interface
  • Available in 1, 2, 3 and 5 second models
  • IP54 Dust/Water rating
SPECIFICATIONS:
  • Accuracy: 2" (1", 2”, 3" and 5" models available)
  • Display resolution: 1"/5" selectable
  • Angle measurement: Absolute, diametrical
  • Compensation: Dual axis
  • Distance measurements:
    • Single prism: 5000m (1",2" and 3")/ 4500m (5”)
    • Triple prism: 6000m (1",2" and 3")/ 5500m (5”)
    • Mini prism: 1500m (1",2" and 3")/ 1000m (5”)
    • Retro target (paper prism): 1200m (1",2" and 3")/ 1000m (5”)
    • Reflectorless Long Range: 900m(1",2" and 3")/500m (5")
    • Reflectorless Standard Range: 500m
  • Weight: 5.8 kg
  • Operating temp: -20°C to 55°C
  • Protection class: IP54
  • Keyboard: 28 Key Keypad
  • Interface: SD card, RS232 & USB - 100,000 points using SD
  • Removable memory: SD Card
  • Battery: Ni-H
  • Operating time: 8 hours continuous operation
  • Warranty: 12 month

Customer Reviews

Based on 3 reviews
100%
(3)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
J
Joel Sammons
Good reliable total station

After a couple of years of use this is still running really well, we use it most days and it has been reliable and performed well. There is no onboard software, but for us that's fine because we just save the points on to the SD card and then download at the end of the day/session. Data transfer is very simple, I prefer the SD to the older system of using RS232 cables, which was unreliable with old total stations. Would I buy one of these again? Yes, I definitely would.

A
Andres
Calibration

My new total station was in perfect calibration and measures really long distances quickly.

T
TG Weir
Value

I have to say, this total station is good value for money and has good reflectorless range.
