Stonex R60 Reflectorless Total Station

Stock Code: R60
Original price $0.01 - Original price $0.01
Original price
$0.01 Excl. GST
Current price

▼ Download Brochure


AVAILABILITY:
This item is usually dispatched same day.

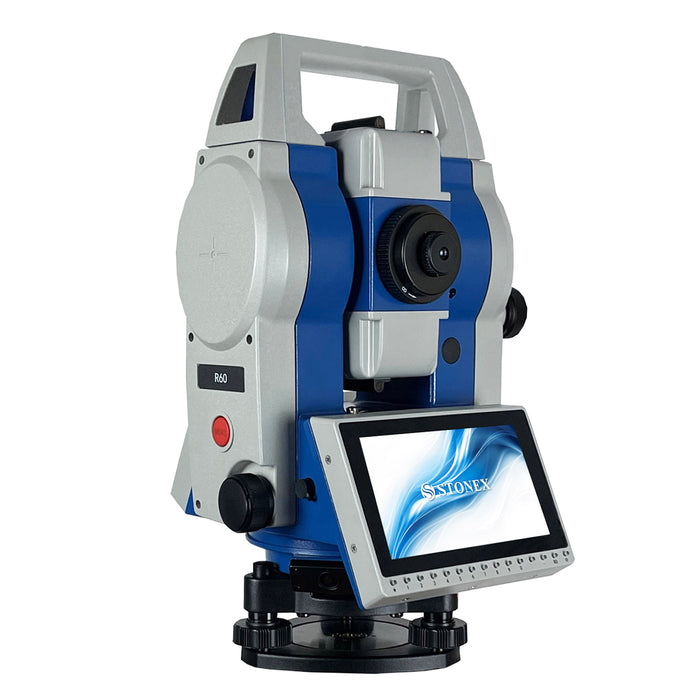

The R60 total station from Stonex has a 5.5-inch touch screen with Android operating system, which provides users with a smartphone-like experience in terms of ease of use and familiarity. With the Android OS, operators can easily access a wide range of features and functions, making their work more efficient and productive.

Additionally, the system’s versatility and customization options make it an ideal choice for those looking for a flexible and adaptable operating system. The R60 features Cube-a software, which allows for a new horizontal view and integration with GNSS surveys. The operator can use background maps and exchange functions between the TS and remote controller (GNSS) with Bluetooth, without the need for cables.

The R60 is available in two versions, one with an accuracy of 2″ and endless drives, and the other with an accuracy of 1″ and lock drives. With a prism, the instrument has an accuracy of 2 mm + 2 ppm, and it can measure reflectorless up to a range of 1000m.

FEATURES:

  • Android 11 operating system
  • Up to 1000 m without a prism and up to 5000 m with a prism
  • GNSS connector on the handle
  • Type-C USB port to charge the battery
  • Endless friction drives
  • 1” accuracy
  • 1000 m reflectorless range
  • Large bright TFT 720×1280 touch screen displays
  • Dual face
  • Large 4GB+32GB memory

SPECIFICATIONS:

  • Accuracy: 1”
  • Display resolution: 0.1”
  • Method: Absolute encoder
  • Compensation: Electronic dual axis
  • Distance measurements:
    • Standard Prism: 5,000m
    • Reflective sheet (60x60mm): 800m
    • Reflectorless: 1000m
  • Distance accuracy:
    • Standard Prism: 2mm +2ppm
    • Reflective sheet (60x60mm): 3mm +2ppm
    • Reflectorless: 3mm +2ppm
  • Weight: 6.5kg (incl. battery & tribrach)
  • Operating temp: -20°C to 50°C
  • Protection class: IP55
  • Memory size: Internal 4GB+32GB
  • Interface: USB-A / USB-C / RS232C / Bluetooth / Wi-Fi
  • Battery: 7.2V, 5,200 mAh Li-Ion
  • Operating time: Up to 16 hours
  • Operating system: Android 11
  • Warranty: 24 months
