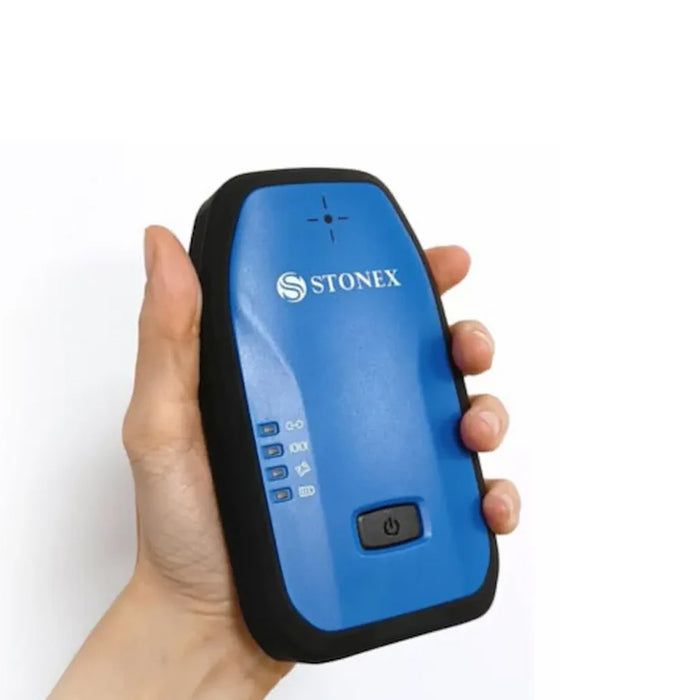

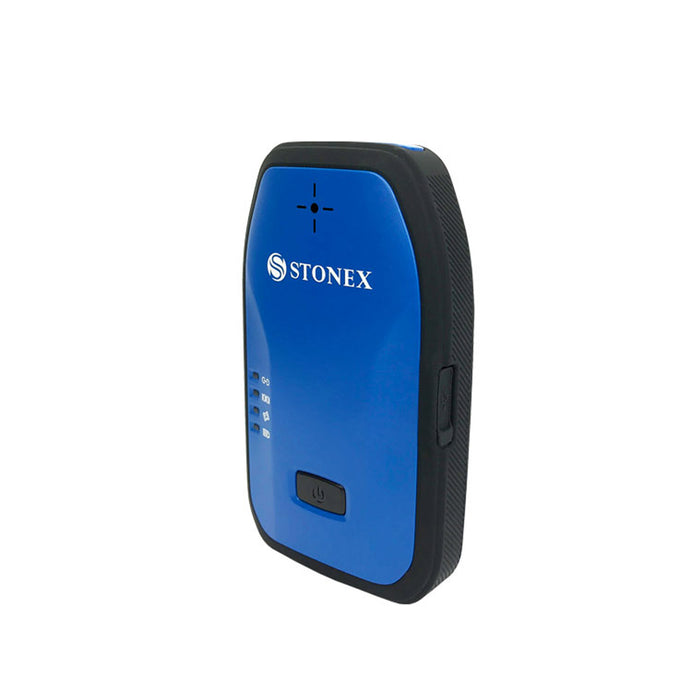

Stonex S590 GIS GNSS Receiver

Stock Code: S590
Original price $0.01 - Original price $0.01
Original price
$0.01 Excl. GST
Current price


AVAILABILITY:
This item is usually dispatched same day.

The S590 is a versatile GNSS receiver featuring a multi-constellation system that supports GPS, GLONASS, BeiDou, Galileo, QZSS, and IRNSS, with advanced PPP correction services available.

It delivers centimeter-level accuracy through sophisticated technology that records raw data for post-processing, ensuring precision in demanding applications.

Equipped with cutting-edge IMU technology, the S590 allows for rapid initialization and accurate measurements at inclinations of up to 60 degrees. Connectivity is enhanced with multiple data transmission options, including Wi-Fi, Bluetooth, and external radio.

Designed for durability, the S590 boasts an IP67 rating, making it resilient against dust and water exposure, ideal for harsh working environments.

INCLUDES:

  • S590 receiver
  • Power Adaptor
  • USB Cable
  • Belt Case
  • Pole Mount

FEATURES:

  • Full constellation system ( GPS, GLONASS, BeiDou, Galileo, QZSS, and IRNSS)
  • High precision positioning, centimetre accuracy
  • Web user control to initialise, manage, monitor the settings of the receiver and to download data using portable or PC, smartphone or tablet
  • Wi-fi, Bluetooth and external radio

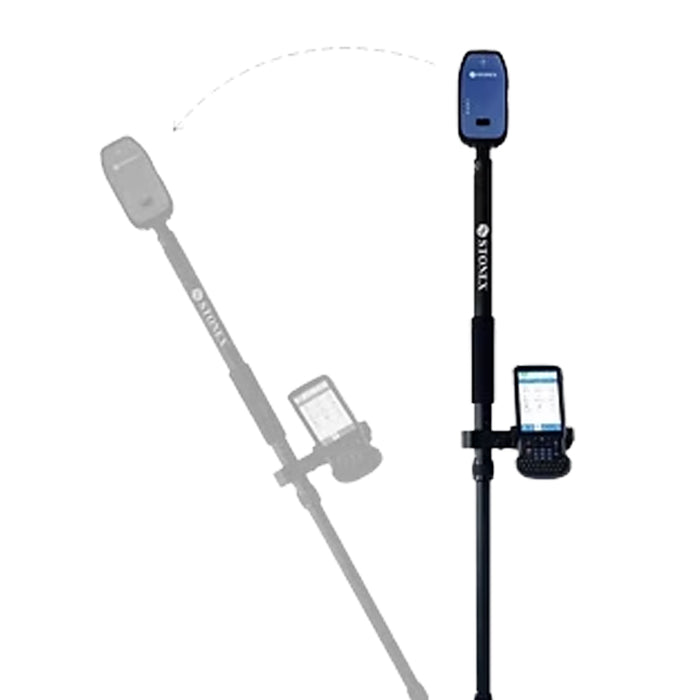

  • IMU tilt compensation

SPECIFICATIONS:

  • Channels: 1408
  • Signal Tracking:
    • GPS: L1 C/A, L1C, L2P, L2C, L5
    • GLONASS: L1, L2, L3
    • Galileo: E1, E5a, E5b, E6
    • BeiDou: B11, B2I, B3I, B1C, B2a, B2b
    • QZSS: L1, L2, L5
    • IRNSS: L5
    • SBAS
  • RTK Initialisation Time: <5 seconds
  • Initialisation Reliability: >99.9%
  • Tilt Sensor: IMU ±60°
  • Positioning Post Processed: 1 cm + 1 ppm RMS
  • Positioning Network and Radio: <2 cm + 1 ppm RMS
  • Battery: 3.85V/6120mAh (non-removeable)
  • Battery Recharge time: Approximately 4 hours from flat
  • Battery Life: Up to 15 hours
  • I/O port TYPE-C connector support USB 2.0
  • Wi-Fi Interface: IEEE 802.11a/b/g/n/ac
  • Differential: RTCM 3.x
  • Bluetooth: 5.0
  • Operating Temperature Range: -30°C to +65°C
  • Storage Temperature Range: -40°C to +80°C
  • Water and Dust Protection: IP67
  • Dimensions: 139 x 81 x 31 mm
  • Weight: 330g
  • Warranty: 24 Months
