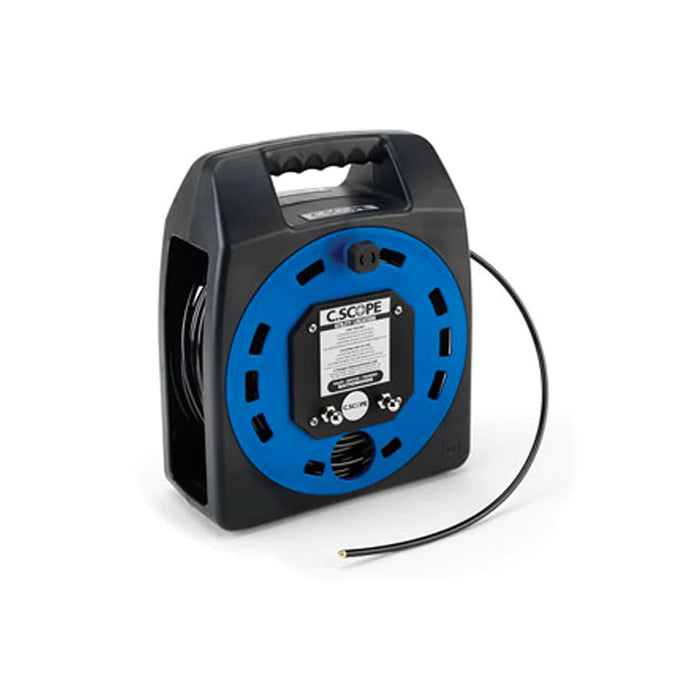

CScope CAT 50metre Plastic Pipe Tracer - C.Scope

Stock Code: YIRPPT50
Original price $1,186.00 - Original price $1,186.00
Original price
$1,186.00 Excl. GST
$1,186.00 Excl. GST
Current price $1,186.00 Excl. GST

▼ Download User Manual


AVAILABILITY:
This item is usually dispatched same day

The C.Scope Tracing Rod is an economical solution to the problem of tracing the route of plastic pipes and conduits. The tracing rod costs little and saves the contractor valuable time when the route of a plastic pipe needs to be determined quickly. The unique design is more resistant to kinks, less prone to breakage and yet smaller in diameter than any other rod of this type. Working in conjunction with the signal generator, the rod is inserted into the pipe and a traceable signal is sent either along the full length of the rod or only the tip. The transmitted signal may be easily traced using a C.Scope cable avoidance locator.


FEATURES:

  • Line tracing mode to allow the exact route of a pipe to be plotted
  • End tracing mode to enable blockages or tees to be pinpointed
  • Compact, lightweight and robust
  • Small diameter tracer rod to allow use within the smallest of service pipes
  • Flexible tracer rod allows progress around and beyond tight bends
  • Simple to operate
  • Suitable for use on live services under pressure

SPECIFICATIONS:

  • Length: 50 metres
  • Diameter: 6mm
  • Frequency: 33kHz
  • Detection depth: 2.5m with Cable Avoidance Tool, 2.5m with Cable Avoidance Tool XD, 3m with Cable Avoidance Tool XD
  • IP Rating for tracer rod and tip: 68
  • IP Rating for casing: 54
  • Warranty: 12 months
