CScope CAT 80m Flexible Pipe Tracer - C.Scope

Stock Code: YIRRFT-80
Original price $0.01 - Original price $0.01
Original price
$0.01 Excl. GST
Current price

AVAILABILITY: This item is brought in to order

Used in conjunction with a signal generator, the C.Scope Flexible Tracer is highly effective at locating and tracing the route of small diameter, non-metallic ducts, pipes, sewers and drains.

When used with any C.Scope Cable Locator and Signal Generator, both the route of a non-metallic pipe and a particular end point can be pinpointed with the Flexible Tracer. This is particularly useful for identifying the position of any blockages
or obstructions within the pipe. If a depth measuring Locator is being used
then it is also possible to know the depth of the pipe/blockage.

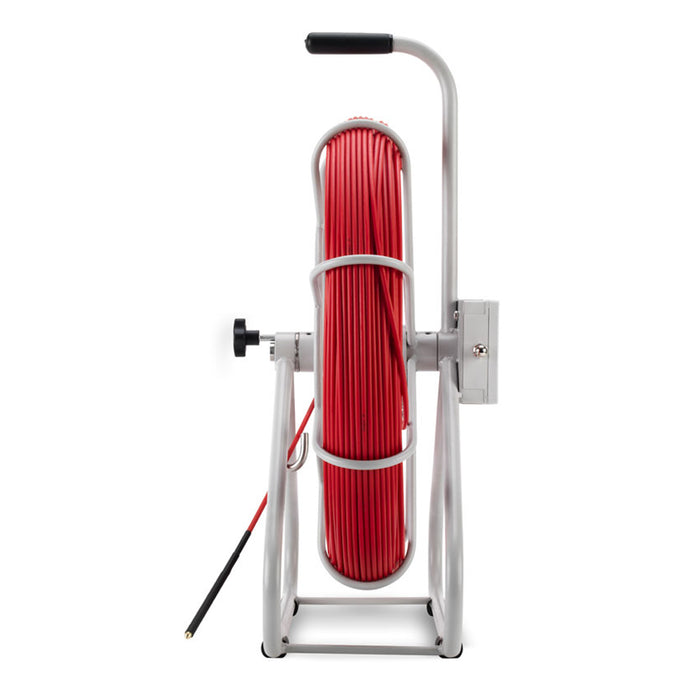

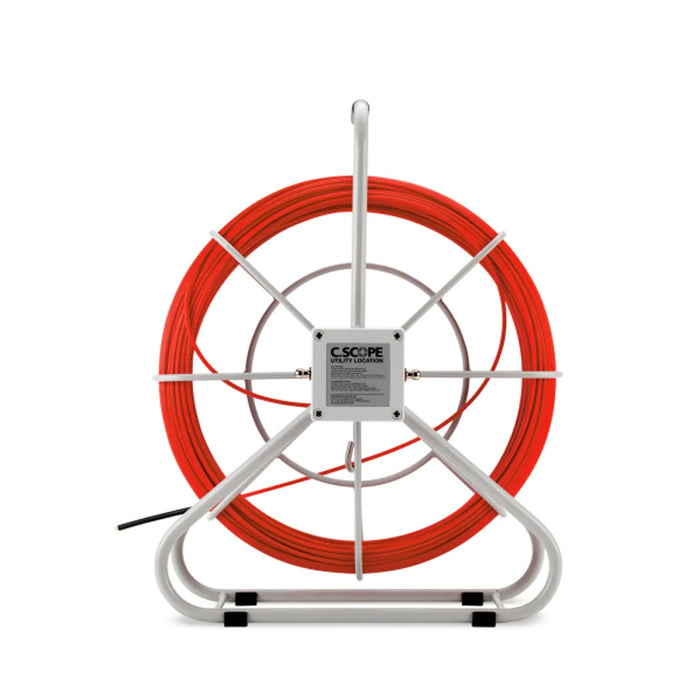

The Flexible Tracer comprises a continuous fibreglass rod housed in a reel that rotates on an axle. The axle has a slip-ring allowing the Signal Generator to remain connected to the connection terminals of the Flexible Tracer whilst it is being inserted into the pipe to be traced. A tiny Sonde is built into the tip of the Flexible Tracer allowing the end point of the Tracer to also be located. This Sonde is also flexible.

  • Line tracing mode to allow the exact route of a pipe to be plotted
  • End tracing mode to enable blockages or tees to be pinpointed
  • Compact, lightweight and robust
  • Small diameter tracer rod to allow use within the smallest of service pipes
  • Flexible tracer rod allows progress around and beyond tight bends
  • Simple to operate
  • Suitable for use on live services under pressure
  • Frequency: Optimised for 32,768Hz (33kHz)
  • Line Detection: 3 m (dependent upon Locator and Signal Generator type and site conditions)
  • Tip Detection: 4 m (dependent upon Locator and Signal Generator type and site conditions)
  • Compatibility: Any Signal Generator or Transmitter with 33kHz or 33/131kHz combined output
  • Rod Length: 80m
  • Rod Diameter: 5mm
  • Rod Material: Quality sleeved fibreglass rod with integral copper wire.
  • Rod Minimum Bend Radius: 10 cm (reducing to 15 cm, 5 cm from Tip)
  • Rod wire diameter: 0.45 mm
  • Transmitting Sonde Diameter: 7.5 mm max.
  • Rigid Tip Length: 20 mm max.
  • Tip Material: Brass
  • Frame Size: 58.8 x 28.8 x 48.5 cm
  • Frame Material: Powder coated 16 mm steel tube
  • Reel Diameter: 48 cm
  • Weight: 7.5 kg
  • Operational Temperature Range: -20oC to 50oC
  • IP rating for Tracer Rod & Tip: 68
  • Warranty: 12 months
