CScope CAT Duct Sonde 33KHz - C.Scope

Stock Code: YIRSD-33
Original price $552.00 - Original price $552.00
Original price
$552.00 Excl. GST
$552.00 Excl. GST
Current price $552.00 Excl. GST

▼ Download User Manual

This item is brought in to order. Please contact us for an estimated delivery time.

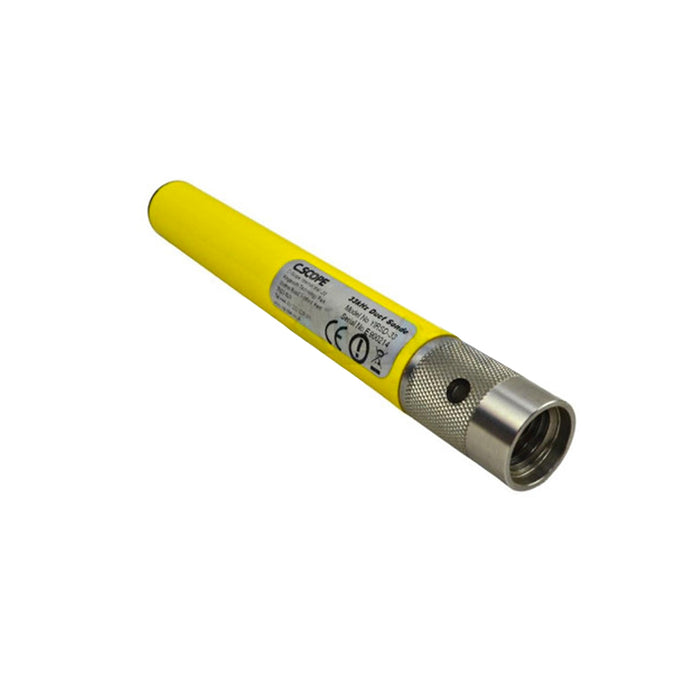

The C.Scope 33KHz Duct Sonde is a small battery powered transmitter which, in typical use, would be screwed onto the end of a duct rod and pushed down a duct so that the direction can be traced using a C.Scope locator set to 'Signal Generator Mode/Transmitter Mode'. The location of a blockage can be identified using this system, with enormous cost saving potential.


  • Simple to use.
  • Very robust.
  • Single AAA battery operation.
  • Low battery signal.
  • Waterproof to IP65.
  • Compatible with most rods.
  • Resin sealed electronics.
  • Construction: Waterproof, robust plastic, O-Ring battery compartment seal, stainless steel end fittings
  • Operating frequency: 32768Hz continuous (33KHz)
  • Range (guide): 2 metres
  • Dimensions: 24mm diameter, 300mm length
  • Fitting: Standard rod thread (¾" Whitworth 16 T.P.I.), female one end, male the other end
  • Battery: 1 x AAA (IEC type LR03) Alkaline - Battery life with intermittent use up to 20 hours at 20°C - Battery low indicated by pulsed 32768Hz signal (33KHz)
