Core W12 Soil Impact Tester 4.5kg

Core W12 Soil Impact Tester 4.5kg

Stock Code: 90220
$3,895.00 - $3,895.00
$3,895.00 Excl. GST
$3,895.00 Excl. GST
$3,895.00 Excl. GST

AVAILABILITY: This item is usually dispatched same day

The Core W12 Soil Impact Tester is a quick, non-invasive device used to verify uniform soil compaction across large job sites. The Core W12 Soil Impact Tester can identify poorly compacted areas, allowing ground work issues to be remedied as they arise, preventing costly rework. Applications include pavement overlays, subgrades, earthworks or trench reinstatement after pipe or cable excavation.

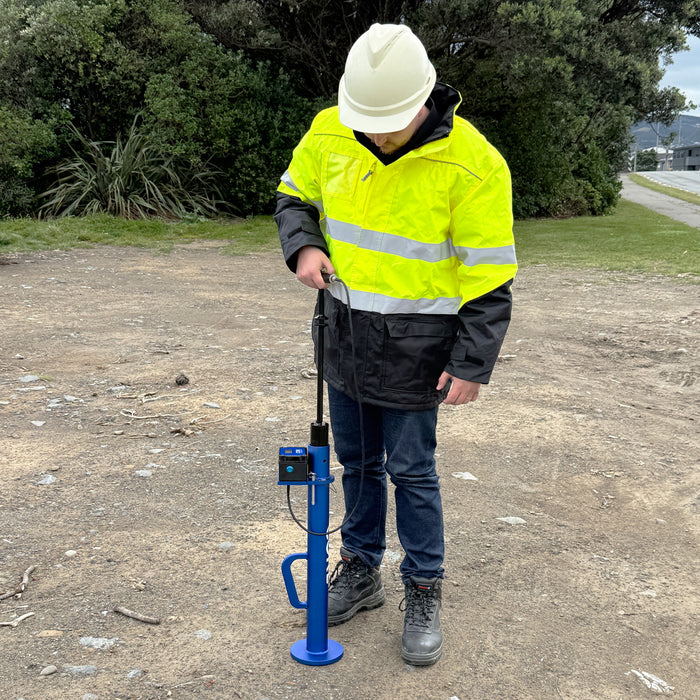

The Core W12 Soil Impact Tester works by dropping a hammer (or drop weight) onto the ground surface. An electronic sensor inside the hammer measures the deceleration upon impact and displays the result as a two-digit impact value (IV). This Impact Value can then be used to assess the ground’s strength and the material’s suitability for construction applications.

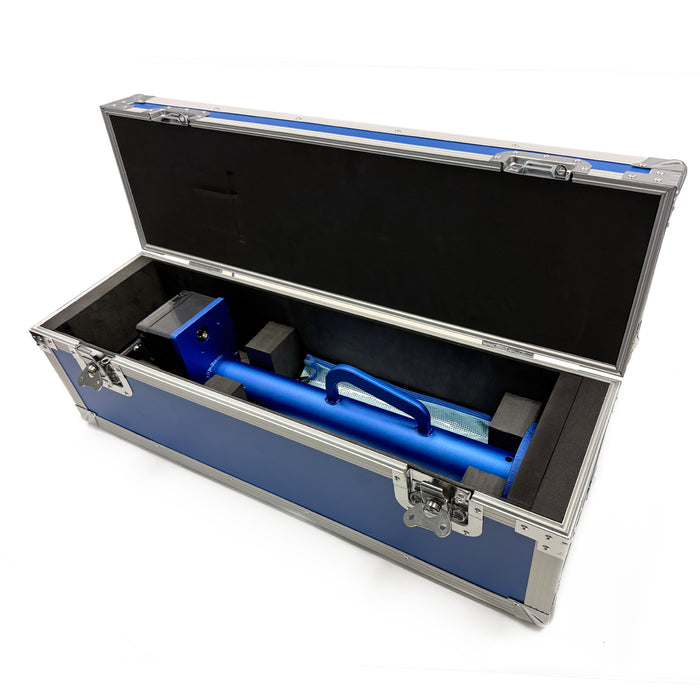

Includes a ruggedised transport case and an industry leading 24 month warranty.

INCLUDES:

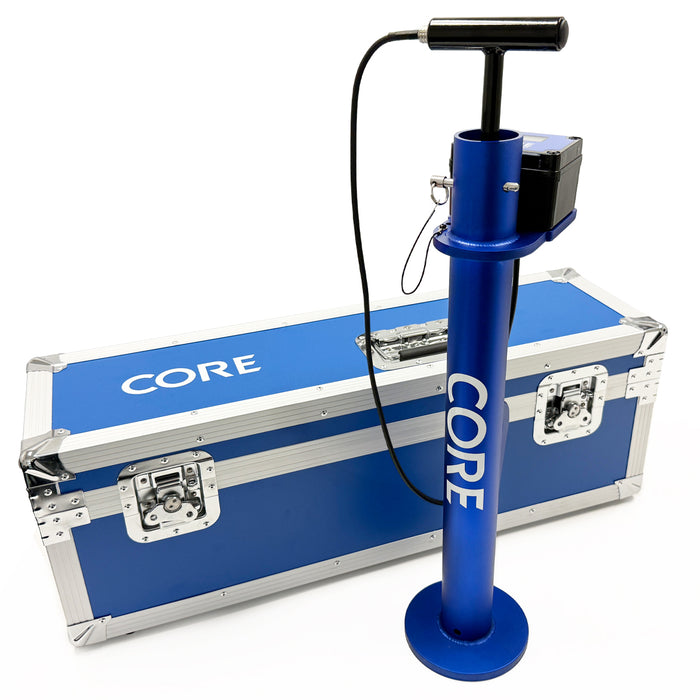

  • Core W12 Impact Tester
  • Two BNC cables
  • Test ring
  • Screwdriver
  • User Manual
  • Carry Case

FEATURES:

  • Single button operation
  • Displays Impact Value (IV)
  • Heavy duty design
  • Supplied in a rugged carry case

SPECIFICATIONS:

  • For: Evaluation of compacted soil and pavement materials with aggregates below 38mm

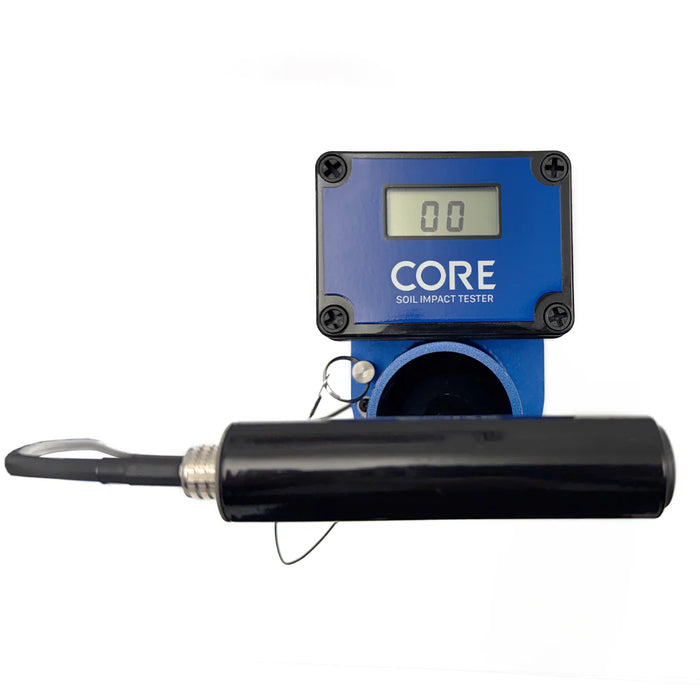

  • Readout: Control box with LCD display
    • Display reading: Impact Value (IV)
    • Display: Two digit LCD with low battery indicator
    • Display: 1-99 Impact Value (IV)
    • Hammer weight: 4.5 Kg
    • Measurement Input: Impact Sensor (sealed in hammer)
    • Power: 9V Alkaline battery
    • Battery life: Up to 60 hours (continuous use)
    • Low battery level indicator: LCD displays “LO BAT” warning
    • Power On/Reset: Push button
    • Power off: Auto power off after 20 seconds
    • Impact tester dimensions: 700 x 160 x 150mm

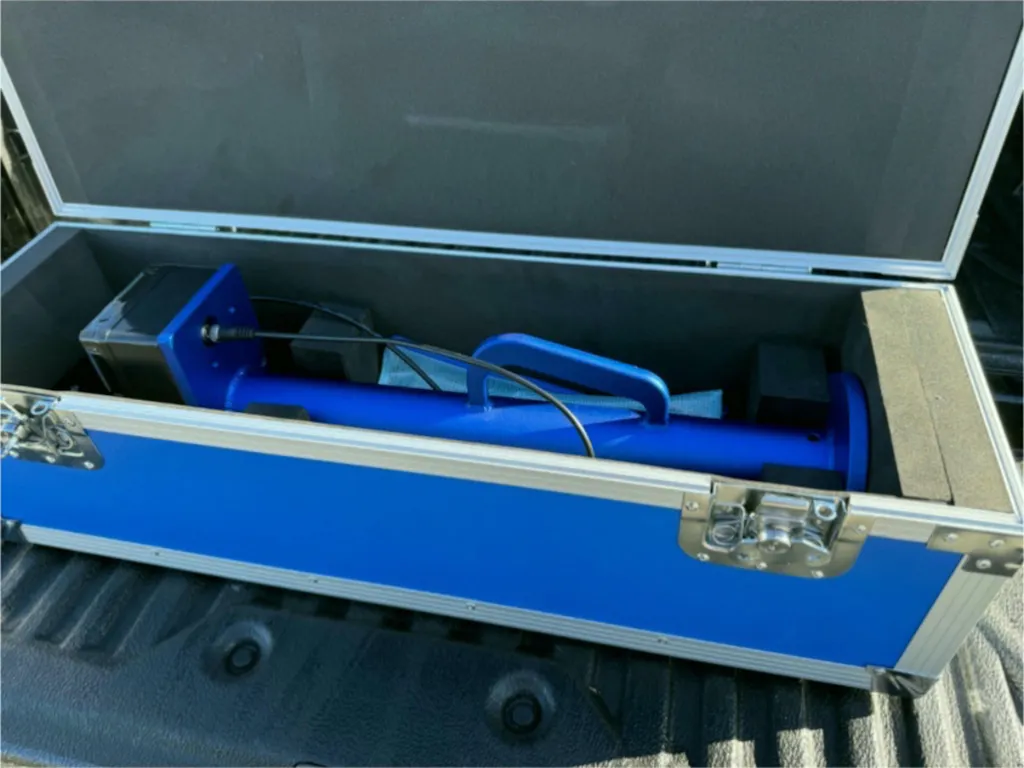

    • Carry case: Heavy duty reinforced transit case
    • Carry case dimensions: 810 x 280 x 250mm
    • Carry case weight: 8.7kg
    • Weight (excl. carry case): 6.9 Kg
    • Weight (inc. carry case): 15.9 Kg
    • IP rating: IP54 (control box)
    • Operating temperature: 0°C to 50°C
    • Storage temperature:-20°C to 60°C
    • Warranty: 24 months
