A versatile laser receiver that’s easy to use, easy to install and easy on your budget.

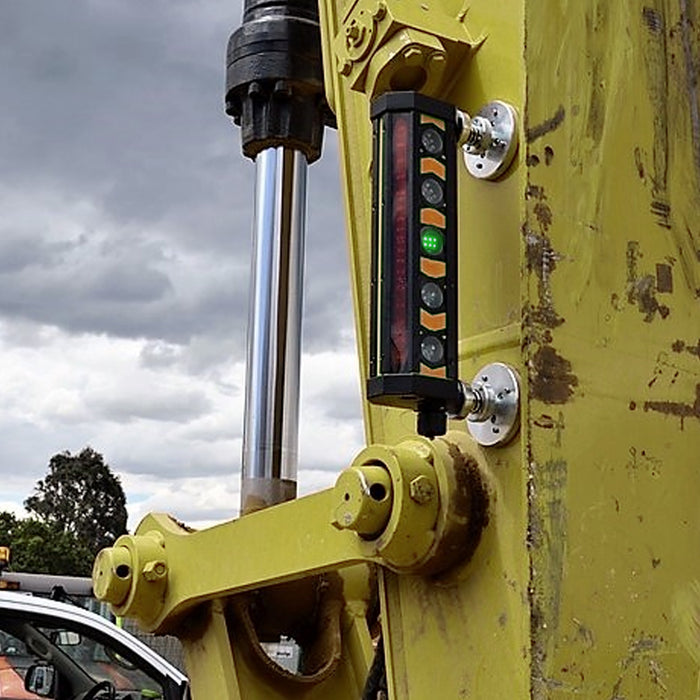

The Trilex MMR Machine Mounted Laser receiver is designed to adapt to any earthmoving machine, so you need only one receiver for any job. Whether mounted on a grader, backhoe, excavator, bobcat or dozer, the MMR's quick mounting, heavy duty magnetic clamps allow simple set up from one machine to another and keep the receiver securely in place without having to weld mounting brackets. The kit also includes pole mounting brackets and hardware, so you can swap out the magnetic mounting for pole clamp mounting if that better suits your needs.
The MMR works with almost any rotating laser, and its on board rechargeable batteries make it convenient to move the unit from one machine to the next.
Two accuracy settings allow you to work from rough grading to final finishing. A built in connector allows the attachment of an optional in-cab remote display to view grade information in the cab. Using a laser as its reference, the MMR provides the machine operator with a visual indication of the grade information needed for continuous work, freeing the grade checker to work elsewhere.
The MMR is built construction tough with an aluminium housing and shock mounted electronics, to stand up to tough worksite conditions.

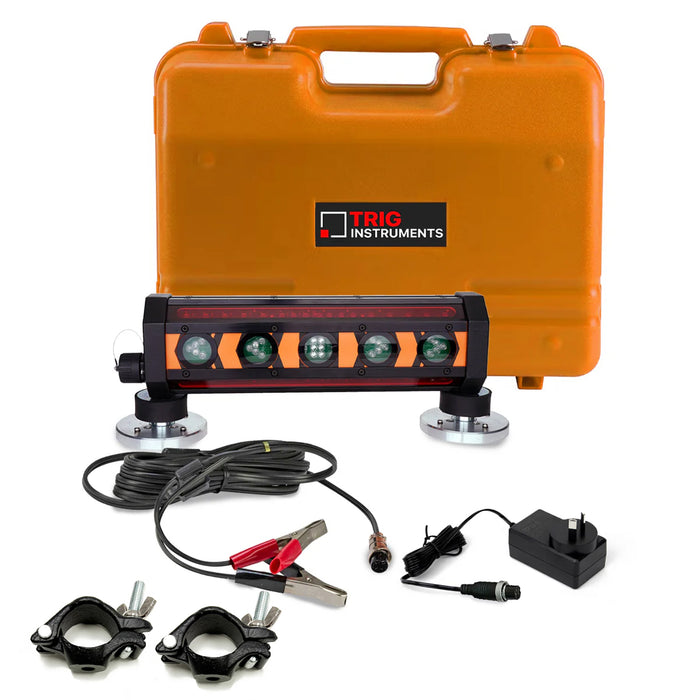

RECEIVER KIT INCLUDES:
- Receiver with in-built rechargeable battery
- Battery Charger
- 12/24V Power Cable
- Pole Mount Clamps
- Hard case

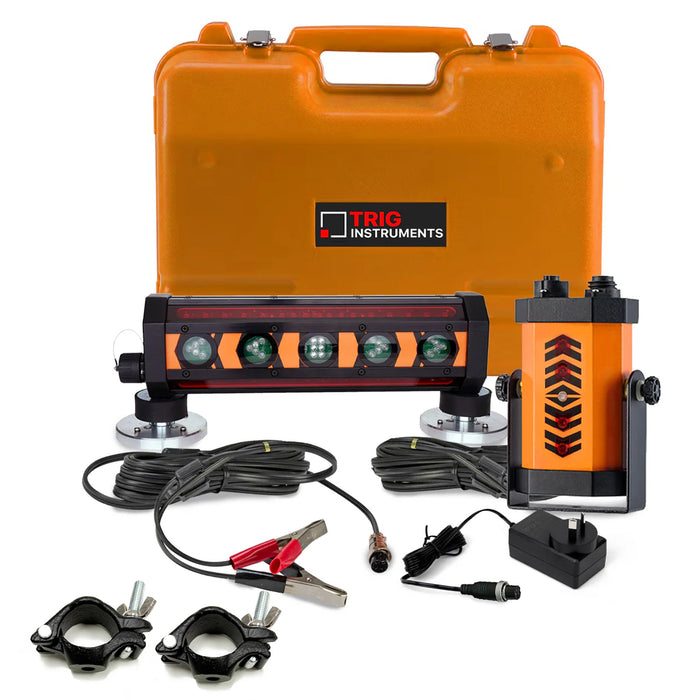

FULL KIT INCLUDES:
- Receiver with in-built rechargeable battery
- Battery Charger
- 12/24V Power Cable (7 pin)
- Pole Mount Clamps
- Hard case
- In-cab Display
- In-cab Display Connecting Cable
- 12/24V Power Cable (4 pin)
IN-CAB DISPLAY ONLY, INCLUDES:
- In-cab Display
- In-cab Display Connecting Cable
- 12/24V Power Cable (4 pin)
FEATURES:
- 360 degree pickup
- Built-in rechargeable battery
- Length of receiving windows 250mm
- Detects beam from rotating laser levels of almost any brand
- Water and dust protected metal housing according to IP66
SPECIFICATIONS:
-
Accuracy: Fine ±3mm to ±12mm
-
Accuracy: Coarse ±5mm to ±25mm
-
Receiving range: 200mm
-
Receiving angle: Full 360
-
Rechargeable batteries: 7.2V NiMh 3500mAh
-
Operating time: 40 hours (using built in battery pack)
-
Charging time: Up to 16 hours (from empty)
-
Operating voltage: 12V to 24V
-
Operating temperature: -10°C to +50°C
-
Laser class compatibility: 2 Red, 3 Red
-
Power Cable Length: 7.5m
-
Remote Display Cable Length: 10m
-
Fits Pole Diameter: 10-50mm
-
Water & Dust: IP66
-
Receiver dimensions: 380x135x90mm (with magnets), 340x180x105mm (with clamps)
-
Weight: 3.1kg (receiver), 1.06kg (in-cab display)
-
Warranty: 12 months
