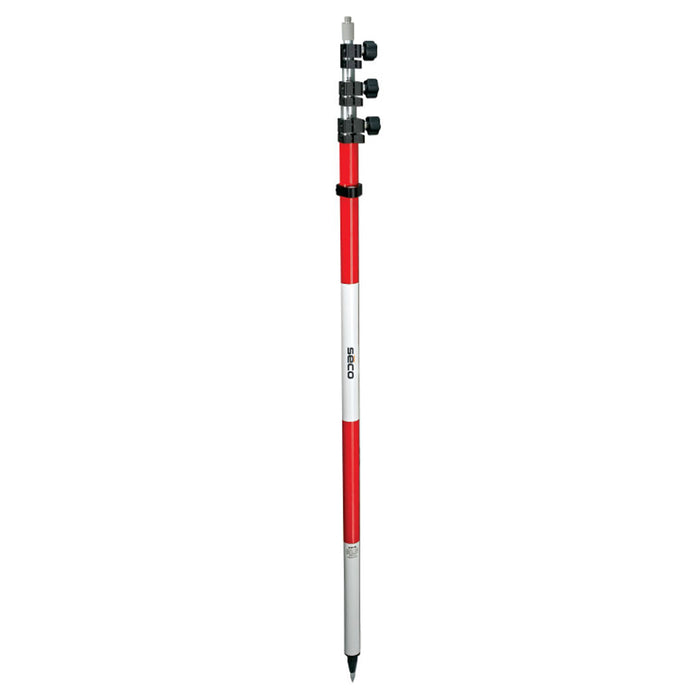

Seco Twist Lock TLV Prism Pole - 4.6m

Stock Code: 5527-30
Original price $550.00 - Original price $550.00
Original price
$550.00 Excl. GST
$550.00 Excl. GST
Current price $550.00 Excl. GST

AVAILABILITY: This item is usually dispatched same day

4.6m Twist-Lock aluminium prism pole with removable 5/8th threadded top can be replaced with an optional bayonet tip if required. Soft rubber knobs to clamp the sections in place. This 3 section red and white banded pole features a centimetre graduation, with the readings calibrated to suit a standard prism.

The Seco TLV system is designed for Trimble users, with the pole graduations being 135mm short, to accommodate for the centre height of a standard Trimble prism. Other Seco TLV adapters are available in various heights, to allow users to get the height graduations to match other brands of prism CLICK HERE for the range.

FEATURES:

  • Wear-resistant for long life
  • 3-section pole
  • Metric Grad (cm)
  • Removable 5/8th thread
  • The soft rubber knob is easy to tighten or loosen, even when wearing gloves
  • Powder-coated and silk screened aluminium
  • Built in circular level bubble
  • Smooth telescopic action
  • Tough twist knob locking mechanism
  • Suitable to use with a prism
  • Interchangeable shoe

SPECIFICATIONS:

  • Extended Length: 4.65m
  • Top: Removable 5/8th thread
  • Vial: 40 minute
  • Closed Length: 1.65m
  • Weight: 3.45kg
  • Warranty: 12 months
