Trilex GC100 2D Grader Grade Control System

Stock Code: GC100
Original price $4,900.00 - Original price $4,900.00
Original price
$4,900.00 Excl. GST
$4,900.00 Excl. GST
Current price $4,900.00 Excl. GST

AVAILABILITY: This item is usually despatched same day

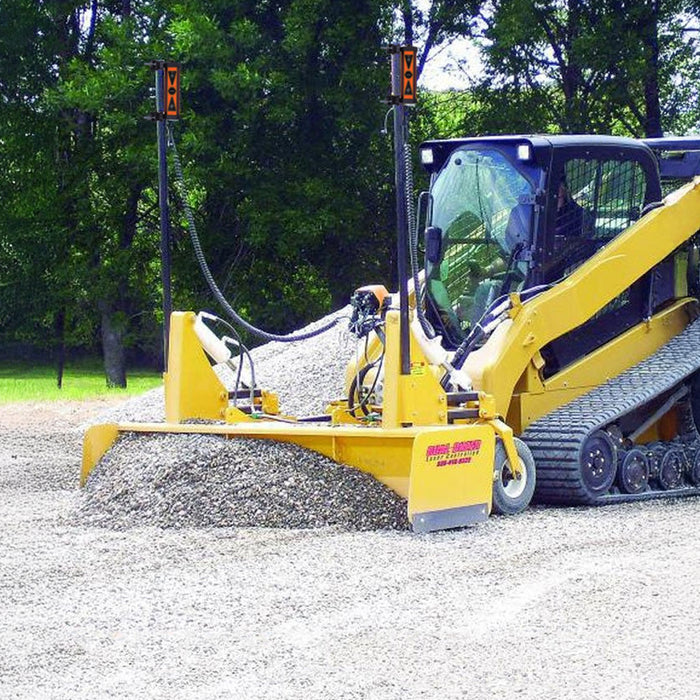

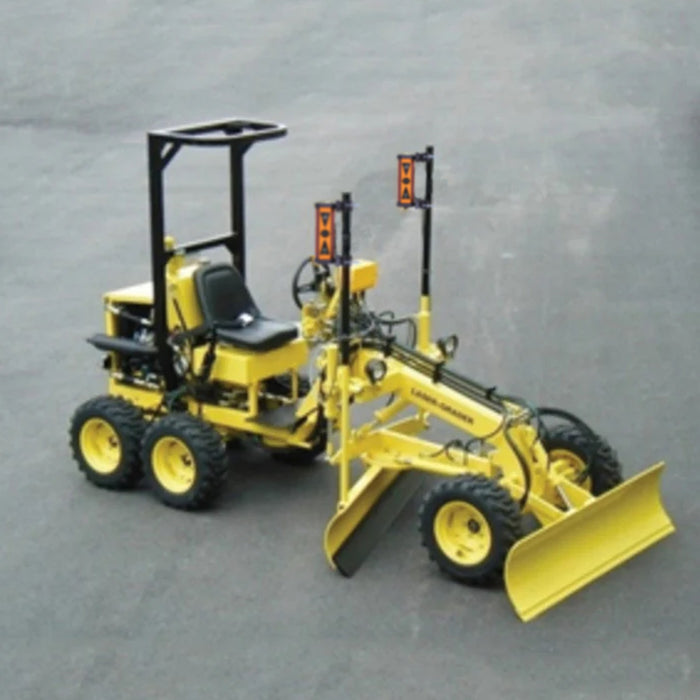

The Trilex GC100 2D Grade Control system uses your laser to give level or grade to provide accurate hydraulic dual machine control. Two large laser receivers mount on either side of the grader blade and connect in to a control box to give full automated control of slope and tilt on Box Blades, Box Scrapers, Bulldozers, Graders, Mini- graders, Skid Steers and Scrapers.

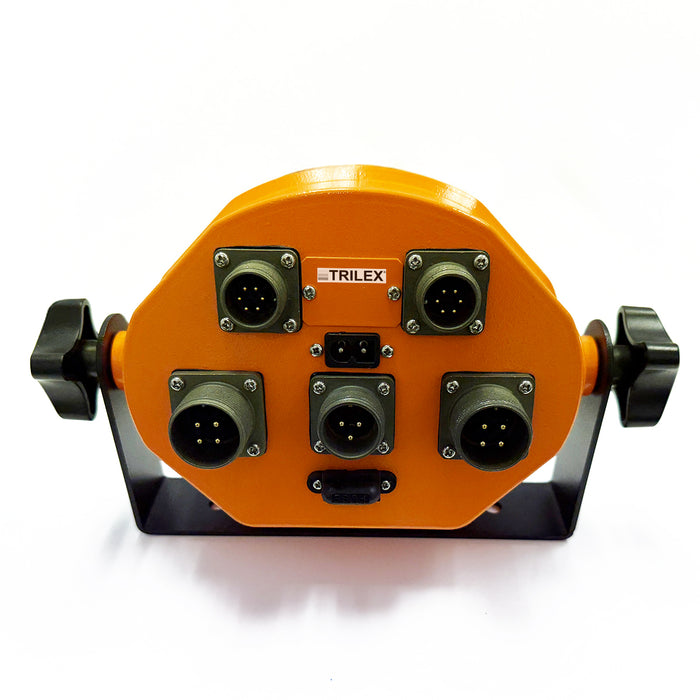

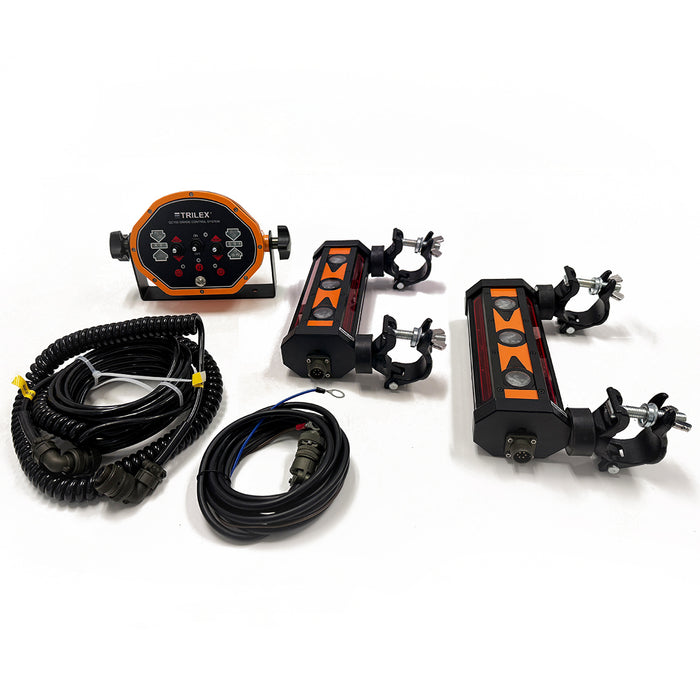

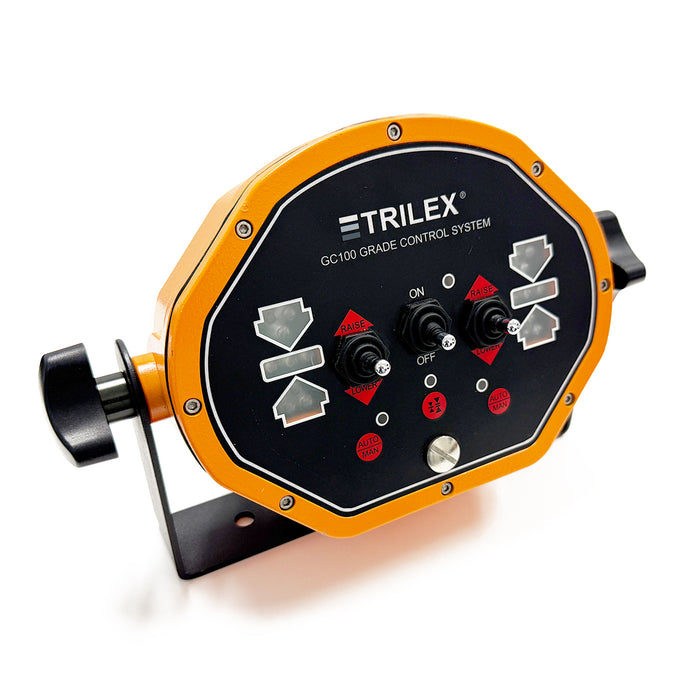

  • Control box
  • Two laser receivers
  • Cabling
  • Dual elevation control
  • Selectable manual or automatic control
  • Bright LED dual elevation display
  • Proportional time valve control
  • Vibration, shock and rain proof
  • Faster job completion
  • Lower fuel costs
  • Improved safety
  • Reduced labour costs
  • Reduced checking
  • Fast to set up and use
  • Simple install
  • Intuitive interface
  • Detecting radius: 300m
  • Receiving angle: 360° fully receivable
  • Detecting window: 200mm
  • Detecting accuracy: Fine detecting ±2.5mm Course detecting ±5mm
  • Horizontal LED: Green
  • Up/Down LEDs: Red
  • Input voltage: DC 12V
  • Maximum current: 5A per driver
  • Valve compatibility: Dual Proportional time (PT) valve control
  • Control box dimensions: 200×148×98mm (without the fitting handle)
  • Weight: 2.1kg
  • Warranty: 3 years
